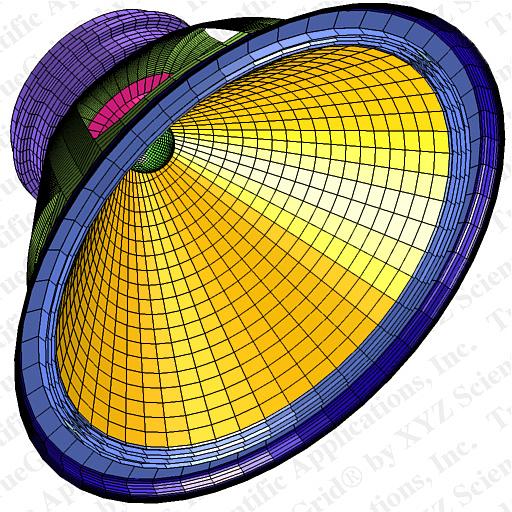

TrueGrid® Finite Element Mesh of a Speaker

*

This model contains 9 parts. The outer spider part has 2 blocks of shells. The speaker cone has 1 block of shells. The dust cap has 5 blocks in a butterfly configuration. The voice coil form and spider ave five shell blocks. The ceramic magnet structure consists of 8 blocks of bricks. The inner magnet is built from 15 blocks of brick elements. The speaker frame has 14 blocks of shells. Finally, the speaker frame lip is made of 2 blocks of shells. There are 26,431 nodes, 8,208 shells, and 14,112 bricks.
