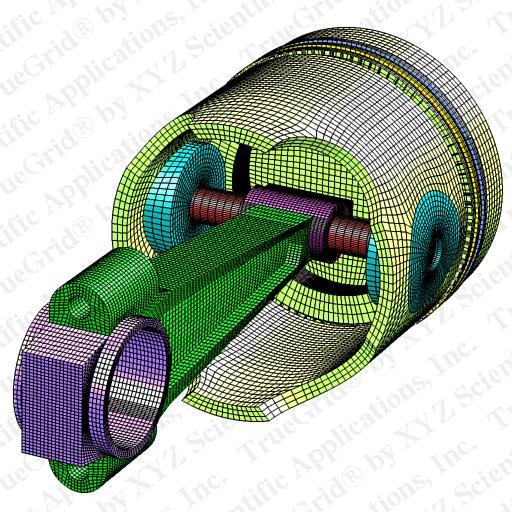

TrueGrid® Finite Element Model of a Rod & Piston: High Density

*

The geometry for this mesh, consisting of 24 cylinders and planes, was created in TrueGrid®. The density is parametric. This version of the model has 136,045 nodes, 1085 shells, and 105,358 bricks in 9 parts.
