TrueGrid® Hexahedral Mesh of a Human Forefoot

human forefoot mesh

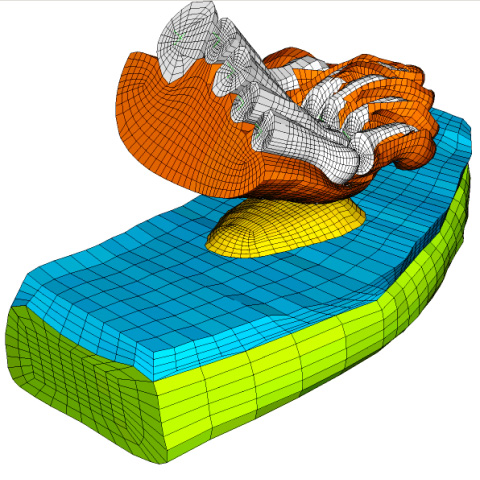

Forefoot positioned over a shoe (outsole and insole) and a Metatarsal Pad.

Sachin P. Budhabhatti has created the following meshes at Cleveland Clinic, Cleveland, OH. The forefoot model includes 17 bones (five metatarsals, five proximal phalanges, five distal phalanges, and two sesamoids) and soft tissue. The model is being used for morphing and footwear design purposes by Cavanagh lab.
These images are provided courtesy of Cavanagh Lab at Cleveland Clinic Foundation. They retain all the copyrights. The study was directed by Dr. Peter R. Cavanagh at Cleveland Clinic. For more information about this mesh, please contact Sachin at b_sachin13@yahoo.com.
