TrueGrid® Finite Element Mesh of an Extruded Rim

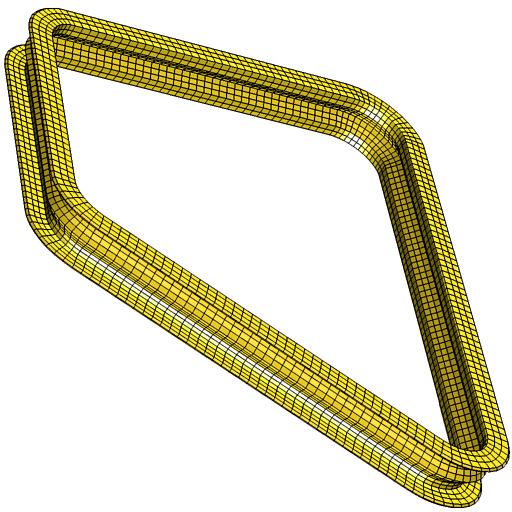

finite element mesh of rim

This single part has a shell stiffener down the middle. There are 16575 nodes, 3104 shells, and 6208 bricks. The input file to TrueGrid® included the instructions to build 20 surfaces by first building 2D cross section curves and sweep them along another curve.
