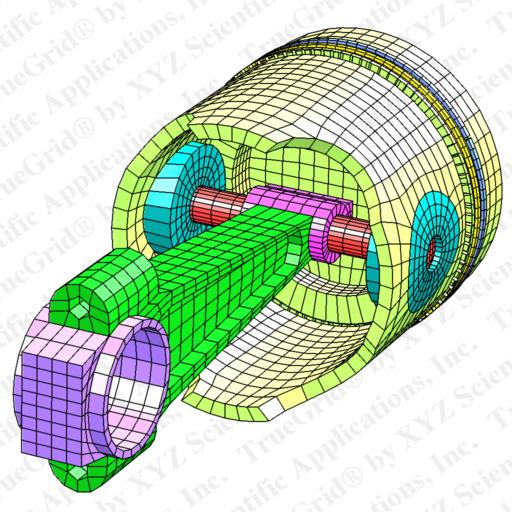

TrueGrid® Finite Element Mesh for a Rod and Piston: Low Density
The geometry for this mesh, consisting of 24 cylinders and planes, was created in TrueGrid®. The density is parametric. This version of the model has 7,488 nodes, 271 shells, and 3,560 bricks in 9 parts.
