TrueGrid® CFD Grid of the Air About a Nacelle -- Magnification Level 1

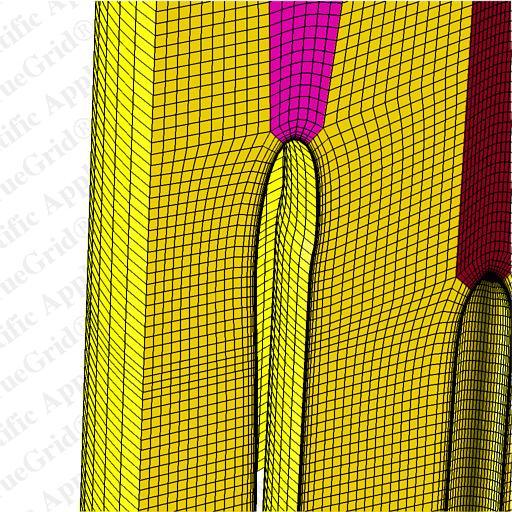

close-up image of grid about an engine nacelle

Zoom In a factor of 4. (69K)

The thickness of the nearly orthogonal boundary elements in this model is one millionth of the radius of the nacelle. Half of the model is shown with some of the mesh removed to see inside. A template is used to build this, so that the mesh generation is essentially automatic. This template can accommodate a wide variation in geometry.
