TrueGrid® CFD Grid of an Impeller -
Maximal Zoom

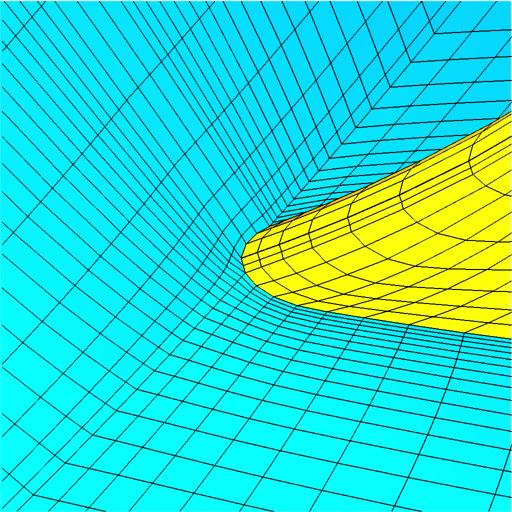

Various types of interpolation algorithms can be seen in this picture.
Once the initial block structure is defined and projected,
TrueGrid® can redistribute nodes along edges,
across faces or through volumes according to various algebraic and elliptic
algorithms.
