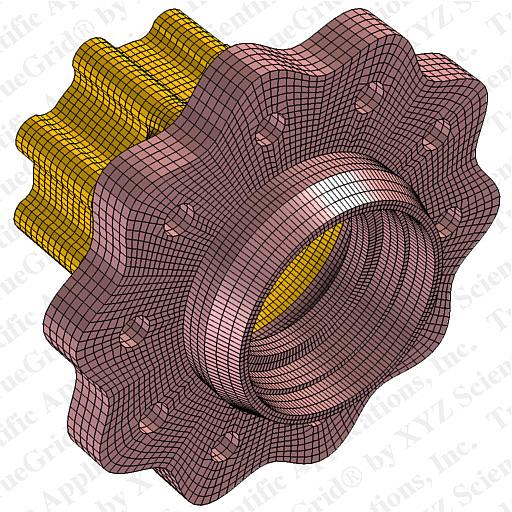

Finite Element Mesh of a Wheel Hub

finite element mesh of a wheel hub

Rotate (99K)

This mesh is constructed from two simple parts. The first part is replicated 20 times. The second part is replicated 16 times. The outer surface is parametric and can be switched by changing one command. 16 surfaces are needed for this mesh: 7 cylinders, 3 tori, 1 extruded 2D curve, and 4 planes. All the surfaces for this model are built in TrueGrid®.
