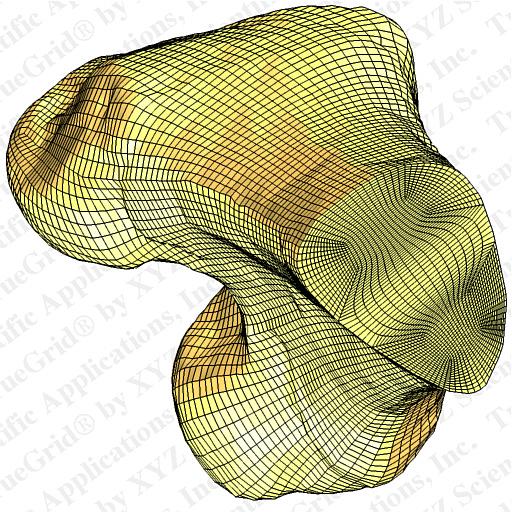

TrueGrid® Hexahedral Mesh of a Femur - Bottom View
A single part in TrueGrid® is used to model a section of a human femur. The cross section of the mesh reveals a double butterfly block structure. There are 190,560 nodes and 174,240 hex brick elements.
