TrueGrid® Hexahedral Mesh of Human Femur

Large Image of Femur
Rotate
single transparent pixel

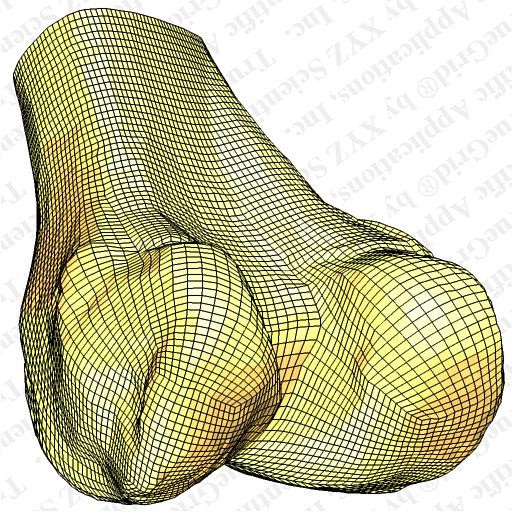

A single part in TrueGrid® is used to model a section of a human femur. The cross section of the mesh reveals a double butterfly block structure. There are 190,560 nodes and 174,240 hexahedral (brick) elements in this model.
