CloroxTM Clean-up® Bottle

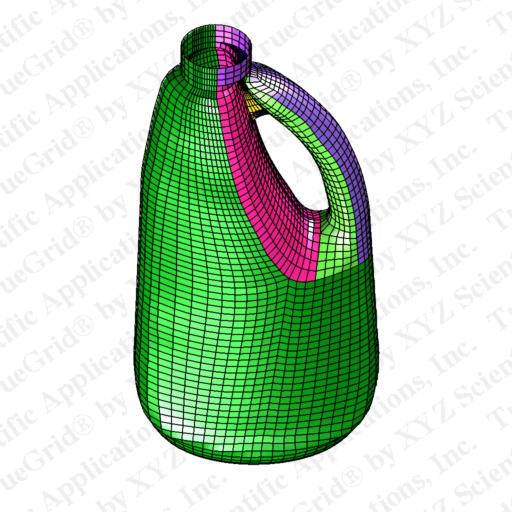

shell mesh of Clorox bottle

The geometry for this bottle was designed in Pro/E®. It has 82 trimmed surfaces. These surfaces form a composite surface in TrueGrid®. The shell mesh is then smoothly distributed across the composite surface.
