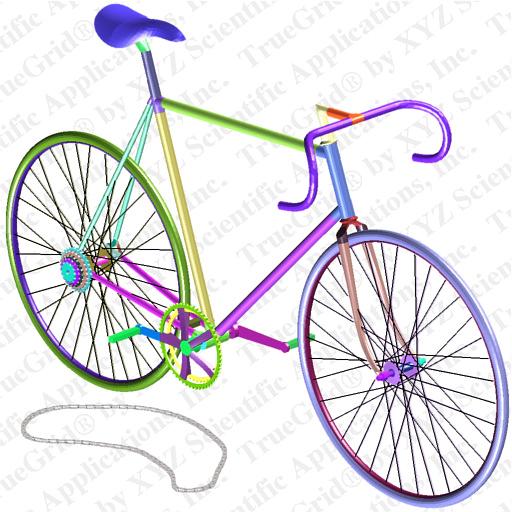

TrueGrid® Finite Element Mesh of a Racing Bike

finite element mesh of bicycle

Zoom in to see the mesh of the handles , crank , sprocket , or chain .

Analysis model developed by TransMotive Technologies, Inc., Santa Rosa, CA. using TrueGrid®. This model was used by TransMotive Technologies, Inc. to do a nonlinear dynamic impact simulation. The mesh lines have beem removed because there are too many mesh lines to distinguish at this distance from the model. The mesh detail can only be seen by zooming in.
